Worse than the Dirty Bomb? Mobile Nuclear Military Reactors

In January 2019, the Defense Department issued a call for information in support of the aptly titled Project Dilithium. It seeks to develop a tiny, readily transportable, yet virtually indestructible nuclear power reactor for use at forward operating bases, the military facilities that provide logistical and troop support to the front-lines of conflict zones.

To be sure, the type of reactor it is seeking could be a great military asset: all the benefits of nuclear energy with none of the risks. The costly and dangerous process of trucking diesel fuel to bases, sometimes through hostile territory, may eventually be a thing of the past. Unfortunately, the need to store and ship irradiated nuclear fuel in a war zone will introduce different problems. And the odds that a meltdown-proof reactor could be successfully developed any time soon are vanishingly small.

The Defense Department…is seeking a nuclear reactor capable of producing 1 to 10 megawatts of electricity. …The reactor, at a minimum, should be less than 40 tons total weight; small enough to be transported by truck, ship, and aircraft; able to run for at least three years without refueling; and capable of semi-autonomous operation… The reactor should have an “inherently safe design” that ensures “a meltdown is physically impossible in various complete failure scenarios;” cause “no net increase in risk to public safety … by contamination with breach of primary core;” and have “minimized consequences to nearby personnel in case of adversary attack.

 An Octrober 2018 report commissioned by the army’s Deputy Chief of Staff admits, quite reasonably, that exposed mobile nuclear plants would “not be expected to survive a direct kinetic attack.” If commanders need to expend significant resources to protect the reactors or their support systems from military strikes, such reactors could become burdens rather than assets.  Can one really invent a reactor robust enough to suffer such a strike without causing unacceptable consequences? …If a severe accident or sabotage attack were to induce more extreme conditions than the reactor was designed to withstand, all bets are off. How long would passive airflow keep nuclear fuel safely cool if, say, an adversary threw an insulating blanket over a small reactor? Or if the reactor were buried under a pile of debris?

Moreover, it is hard to imagine that a direct explosive breach of the reactor core would not result in dispersal of some radioactive contamination. An operating nuclear reactor is essentially a can filled with concentrated radioactive material, including some highly volatile radionuclides, under conditions of high pressure and/or temperature. Even a reactor as small as 1 megawatt-electric would contain a large quantity of highly radioactive, long-lived isotopes such as cesium-137—a potential dirty bomb far bigger than the medical radiation sources that have caused much concern among security experts.

At best a release of radioactivity would be a costly disruption, and at worst it would cause immediate harm to personnel, render the base unusable for years, and alienate the host country. For any reactor and fuel design, extensive experimental and analytical work would be needed to understand how much radioactivity could actually escape after an attack and how far it would disperse. This is also true for spent fuel being stored or transported.

The 2018 report describes several existing reactor concepts that it thinks might meet its needs. One is the 2 megawatt-electric “Megapower” reactor being designed by Los Alamos National Laboratory. But a 2017 INL study of the design iden­­tified several major safety concerns, including vulnerabilities to seismic and flooding events. The study also found that the reactor lacked sufficient barriers to prevent fission product release in an accident. INL quickly developed two variants of the original Los Alamos design, but a subsequent review found that those shared many of the safety flaws of the original and introduced some new ones.

Building Mobile Nuclear Reactor LANL

The other designs are high-temperature gas-cooled reactors that use TRISO (“tristructural isotropic”) fuel, which was originally developed decades ago for use in reactors such as the now-decommissioned Fort St. Vrain plant in Colorado. TRISO fuel consists of small particles of uranium coated with layers of different materials designed to retain most fission products at temperatures up to 1,600 degrees Celsius.

TRISO fuel enthusiasts have long claimed that reactors utilizing it do not need containments because each particle essentially has its own. This would seem to make TRISO an ideal fuel for small, mobile reactors, which can’t be equipped with the large, leak-tight containment structures typical of commercial power reactors. The army report buys into the notion that these “encapsulated” nuclear fuels can “avoid the release of radioactive volatile elements” and prevent contamination of the surrounding area, either during normal operations or accidents.

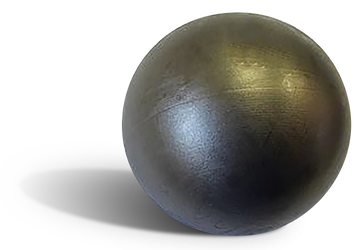

TRISO fuel contained in pebble

TRISO fuel’s actual performance has been inconsistent, however, and much is still not known. The Energy Department has been carrying out a program for more than a decade to try to improve TRISO fuel, but final results are not expected for years. In addition, if the fuel temperature rises above 1,600 degrees Celsius, fission product release can rapidly increase, making it vulnerable to incendiary weapons that burn hotter, such as thermite. The Defense Department may have already realized that TRISO fuel is not as miraculous as it first thought.

The RFI also specifies that the reactor should be capable of being transported within seven days after shutdown, presumably with the irradiated nuclear fuel still inside. While this requirement is understandable—if forces need to retreat in a hurry, they would not want to leave the reactor behind—it is unrealistic to expect this could be met while ensuring safety. Typically, spent nuclear fuel is stored for many months to years after discharge from a reactor before regulators allow it to be shipped, to allow for both thermal cooling and decay of short-lived, intensely radioactive fission products. Moving a reactor and its irradiated fuel so soon after shutdown could be a risky business.

Finally, the proliferation risks of these reactors and their fuel is a concern. The original RFI stipulated that the reactor fuel had to be high-assay low-enriched uranium (HALEU), which is uranium enriched to levels above the 5 percent uranium-235 concentration of conventional power reactors, but still below the 20 percent that marks the lower limit for highly enriched uranium (HEU), which is usable in nuclear weapons….If the Defense Department goes forward with Project Dilithium, other nations, including US adversaries, may be prompted to start producing HALEU and building their own military power reactors.

Excerptsf rom Edwin Lyman The Pentagon wants to boldly go where no nuclear reactor has gone before. It won’t work, Feb. 22, 2019

Nuclear Reactors: Small + Modular

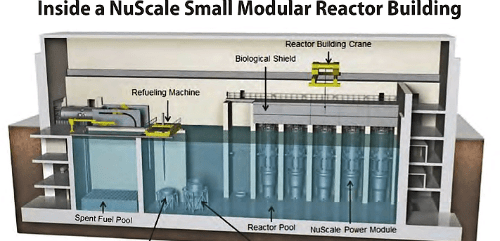

Small Modular Reactors (SMRs) are nuclear power plants that are smaller in size (300 MWe or less) than current generation base load plants (1,000 MWe or higher). These smaller, compact designs are factory-fabricated reactors that can be transported by truck or rail to a nuclear power site. SMRs will play an important role in addressing the energy security, economic and climate goals of the U.S. if they can be commercially deployed within the next decade….

Because of their smaller size, they also can use passive safety systems and be built underground to limit the dangers of radioactive leaks. The modular design could allow parts of the plant to be made in a factory to ensure consistent design and cheaper costs.

Tennessee Valley Authority (TVA) is in a joint pilot project with the U.S. Department of Energy to help test the new technology. Dan Stout, senior manager of SMR technology at TVA, said working with DOE to test the new power plant “is part of TVA’s mission,” although he said any final decision will require that the power source is also cost effective. “We’re focused on providing an option that provides reliable, affordable and carbon-free energy, and so we want to pursue this early site permit to give us the option for possibly locating SMRs on the site for 10 to 20 years,” Stout said.

Excerpts from US Department of Energy

and Oak Ridge could take lead in new TVA nuclear design, but critics question secrecy, need

Nuclear Industry: France, Russia and China

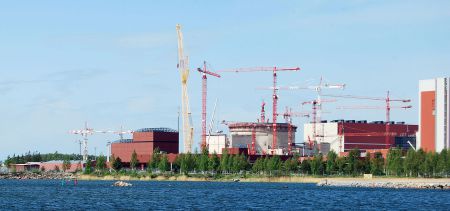

[Regarding the French nuclear company Areva] its newest product, the expensive European Pressurised Reactor (EPR), has encountered more than the teething problems common to all big industrial projects. A plant in Finland is almost ten years behind schedule and almost three times over budget: Areva has had to write off billions as a result….Two reactors in China and the only new-build in France, at Flamanville, are also running late. EDF played an important role in managing the Chinese and French projects.

Besides criticism for slack project management, Areva and EDF (Electricite de France) have been questioned over technical standards. The steel in the main reactor vessel at Flamanville is faulty, the Nuclear Safety Authority said in April 2015. EDF disputes the finding and, with Areva, has started new tests. The news added to growing disenchantment in Britain with an agreement, not yet firm, that expensively entrusts the construction of a power station incorporating two Areva EPRs to a consortium led by EDF.  It seems unlikely that Areva will find many more foreign takers for its existing reactor…

[S]ome of Areva’s rivals are racing ahead. Rosatom, a Russian nuclear firm, has built up a fat order-book. Keen pricing, generous financing and relaxed technology transfer help, though Western sanctions do not. China’s two reactor-builders, CNNC and CGN, are peddling their own new design, Hualong One; in February CNNC signed a preliminary agreement to supply a reactor to Argentina.

Areva has little reason to hope for a surge of new orders at home. France’s 58 reactors are elderly but EDF, which operates them, plans to revamp rather than replace them…A new law set to come into force this summer, pledging somehow to cut France’s dependence on nuclear power from 75% to 50% of its electricity needs by 2025, will make Areva’s prospects even bleaker.

Excerpts from France’s nuclear industry: Arevaderci, Economist, May 23, 2015, at 53.

The 2015 US-China Nuclear Deal

President Obama intends to renew a nuclear cooperation agreement with China. The deal would allow Beijing to buy more U.S.-designed reactors and pursue a facility or the technology to reprocess plutonium from spent fuel. China would also be able to buy reactor coolant technology that experts say could be adapted to make its submarines quieter and harder to detect.,,

The Nuclear Energy Institute, an industry trade group, argues that the new agreement will clear the way for U.S. companies to sell dozens of nuclear reactors to China, the biggest nuclear power market in the world.  Yet the new version of the nuclear accord — known as a 123 agreement under the Atomic Energy Act of 1954 — would give China leeway to buy U.S. nuclear energy technology at a sensitive moment: The Obama administration has been trying to rally support among lawmakers and the public for a deal that would restrict Iran’s nuclear program — a deal negotiated with China’s support.,,,

If Congress rejects the deal, “that would allow another country with lower levels of proliferation controls to step in and fill that void,” said a senior administration official…

{T}he current nuclear agreement with China does not expire until the end of the year (2015)…Henry Sokolski, executive director of the Nonproliferation Policy Education Center, has been urging lawmakers to insist on requiring advance consent for the reprocessing of spent fuel from U.S.-designed reactors into plutonium suitable for weapons. He also is concerned about the sale of certain nuclear energy technologies, especially coolant pumps with possible naval use.

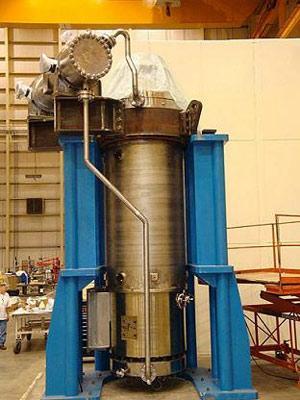

Charlotte-based Curtiss-Wright developed advanced coolant pumps for the U.S. Navy’s submarines. The same plant produces a scaled-up version for the Westinghouse AP1000 series reactors, each of which uses four big pumps. These pumps reduce noises that would make a submarine easier to detect…..An Obama administration official said the reactor coolant pumps are much too big to fit into a submarine. However, a 2008 paper by two former nuclear submarine officers working on threat reduction said that “the reverse engineering would likely be difficult” but added that “certainly, the Chinese have already reversed engineered very complex imported technology in the aerospace and nuclear fields.”…

The United States has bilateral 123 agreements with 22 countries, plus Taiwan, for the peaceful use of nuclear power. Some countries that do not have such agreements, including Saudi Arabia, Jordan and Malaysia, have expressed interest in clearing obstacles to building nuclear reactors.

China and the United States reached a nuclear cooperation pact in 1985, before China agreed to safeguards with the International Atomic Energy Agency. IAEA safeguards went into force in 1989, but Congress imposed new restrictions after the Chinese government’s June 1989 crackdown on protesters in Tiananmen Square. The 123 agreement finally went into effect in March 1998; President Bill Clinton waived the 1989 sanctions after China pledged to end assistance to Pakistan’s nuclear weapons program and nuclear cooperation with Iran.

In December 2006, Westinghouse Electric — majority-owned by Toshiba — signed an agreement to sell its AP1000 reactors to China. Four are under construction, six more are planned, and the company hopes to sell 30 others, according to an April report from the Congressional Research Service (CRS)….“Missile proliferation from Chinese entities is a continuing concern.” The United States wants China to refrain from selling missiles capable of carrying nuclear weapons, a payload of 1,100 pounds, as far as 190 miles

China has a pilot plant engaged in reprocessing in Jiu Quan, a remote desert town in Gansu province. Satellite photos show that it is next to a former military reprocessing plant, according to Frank von Hippel, a Princeton University physics professor who specializes in nuclear arms control.

Excerpts from Steven Mufson, Obama’s quiet nuclear deal with China raises proliferation concerns,   Washington Post  May 10, 2015

Indigenization of Nuclear Energy: China

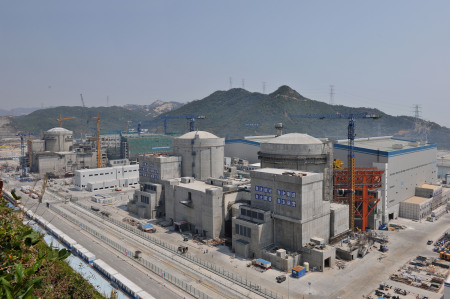

China General Nuclear Power (CGN), a state-owned enterprise (SOE) that is the country’s largest nuclear firm, is planning to float shares on the Hong Kong stock exchange on December 10th. Market rumours suggest it will raise well over $3 billion. Dealogic, a research firm, reckons this is likely to be the biggest listing in Hong Kong as well as the largest utility IPO globally so far this year.

Some see in the flotation a harbinger of a nuclear renaissance. If true, this would bring cheer to a gloomy industry. The shale-gas revolution has undercut the economics of building new nuclear reactors in North America. And since the deadly tsunami and nuclear fiasco at the Fukushima site in Japan nearly four years ago, confidence in this technology has waned in many places. Germany, for example, is getting out of nuclear power (see article).

China put a moratorium on new plants after that accident too, but the boosters have now prevailed over the doubters. The State Council, the country’s ruling body, wants a big expansion of nuclear power along the country’s coast to triple capacity by 2020 (see map). This plan is not as ambitious as before Fukushima, but Moody’s, a credit-ratings agency, nevertheless calls it an “aggressive nuclear expansion”. Some analysts look beyond 2020 and predict an even bigger wave of nuclear power plants will be built in inland provinces, giving a boost to this type of energy worldwide….One factor that could slow growth is cost. In the past Chinese governments were happy to throw endless pots of money at favoured state firms in industries deemed “strategic”. Times are changing, however. Economic growth is slowing, and the government must now deal with massive debts left over from previous investment binges. Since the export-oriented and investment-led model of growth is sputtering, officials may soon be keen to boost domestic consumption rather than merely shovel subsidised capital at big investment projects.

And it is not just that China may—and should—be starting to pay attention to the true cost of infrastructure projects. Rapid technological advances are also making low-carbon alternatives to nuclear power appear more attractive. Bloomberg New Energy Finance, an industry publisher, forecasts that onshore wind will be the cheapest way to make electricity in the country by 2030. Though coal will remain China’s leading fuel for some time, Bloomberg’s analysts think that renewables could produce three times as much power as nuclear in the country by that year.

What is more, as a latecomer, China had the chance to standardise designs of new nuclear plants to gain economies of scale and minimise risk. But rather than build copies of safe and proven designs from Westinghouse of America or Areva of France, it is insisting on “indigenisation”. This approach is in line with China’s desire to create national champions in key industries, as it has in high-speed rail.

Excerpts from Nuclear power in China Promethean perils, Economist, Dec. 6, 2014, at 75

Nuclear Waste: Germany to South Carolina

The U.S. Department of Energy said on June 4, 2014 it will study the environmental risk of importing spent nuclear fuel from Germany that contains highly enriched uranium, a move believed to be the first for the United States.  The department said it is considering a plan to ship the nuclear waste from Germany to the Savannah River Site, a federal facility in South Carolina.  The 310-acre site already holds millions of gallons of high-level nuclear waste in tanks. The waste came from reactors in South Carolina that produced plutonium for nuclear weapons from 1953 to 1989.

The Energy Department said it wants to remove 900 kilograms (1,984 pounds) of uranium the United States sold to Germany years ago and render it safe under U.S. nuclear non-proliferation treaties.  A technique for the three-year process of extracting the uranium, which is contained in graphite balls, is being developed at the site in South Carolina, according to the Energy Department.

[The radioactive waste to be imported to the United States from Germany consists of 152 30-tonne CASTOR casks containing 290,000 graphite balls from the  AVR gas-cooled prototype reactor, stored at the Juelich research center [Forschungszentrum Jülich (FZJ)], and 305 CASTOR casks containing 605,000 graphite balls from the THTR-300 reactor, stored at the Ahaus waste site. While the waste contains some US-origin highly enriched uranium (HEU), the amount is unclear as the material was irradiated and has been in storage for over 20 years since the reactors closed.]

Some critics question whether the department has fully developed a clear plan to dispose of the radioactive waste.”They’re proposing to extract the uranium and reuse it as fuel by a process that has never been done before,” said Tom Clements, president of SRS Watch, a nuclear watchdog group in South Carolina….

Sources told Reuters in May that German utilities were in talks with the government about setting up a “bad bank” for nuclear plants, in response to German Chancellor Angela Merkel’s decision to close them all by 2022 after Japan’s Fukushima nuclear disaster.

Excerpt from  Harriet McLeod, German nuclear waste may be headed to South Carolina site, Reuters, June 4, 2014

A Leaking Atom Bomb: Hanford, USA

There are “significant construction flaws” in some newer, double-walled storage tanks at Washington state’s Hanford nuclear waste complex, which could lead to additional leaks, according to documents obtained by The Associated Press.  Those tanks hold some of the worst radioactive waste at the nation’s most contaminated nuclear site.

One of the 28 giant underground tanks was found to be leaking in 2013. But subsequent surveys of other double-walled tanks performed for the U.S. Department of Energy by one of its Hanford contractors found at least six shared defects with the leaking tank that could lead to future leaks, the documents said. Thirteen additional tanks also might be compromised, according to the documents.  Questions about the storage tanks jeopardize efforts to clean up radioactive waste at the southeastern Washington site. Those efforts already cost taxpayers about $2 billion a year.  “It is time for the Department (of Energy) to stop hiding the ball and pretending that the situation at Hanford is being effectively managed,” Sen. Ron Wyden, D-Ore., wrote this week in a letter to Energy Secretary Ernest Moniz…

Hanford contains some 53 million gallons of high-level radioactive wastes from the production of plutonium for nuclear weapons. They are stored in 177 underground storage tanks, many of which date back to World War II and are single-walled models that have leaked. The 28 double-walled tanks were built from the 1960s to the 1980s.

Current plans call for transferring wastes from leaking single-walled tanks to the newer and bigger double-walled tanks, where the waste will be stored while a $13 billion plant for treating the waste is constructed. But the treatment plant is plagued with design problems and construction has stalled.  The situation did not appear dire until the news in October 2012 that the oldest of the double-walled tanks, called AY-102, had leaked, becoming the first of those 28 tanks to do so.

At the time, the Energy Department blamed construction problems with this particular tank for the leak and said it “seems unlikely” that the other double-walled tanks would leak.  However, Wyden said engineering reviews of six other double-walled tanks “found significant construction flaws in those six tanks essentially similar to those at the leaking tank.” Those six tanks contain about 5 million gallons of radioactive wastes, wrote Wyden, who is chairman of the Senate Energy and Natural Resources Committee….

Hanford, located near the city of Richland, stores about two-thirds of the nation’s high-level radioactive waste.  Officials have said the leaking materials pose no immediate risk to public safety or the environment because it would take perhaps years for the chemicals to reach groundwater.  The federal government built Hanford at the height of World War II as part of the Manhattan Project to build the atomic bomb.

Excerpts from Drew Vattiat, Hanford’s worst radioactive waste vulnerable to leaks from flaws in newer storage tanks, Associated Press, Feb. 28, 2014
